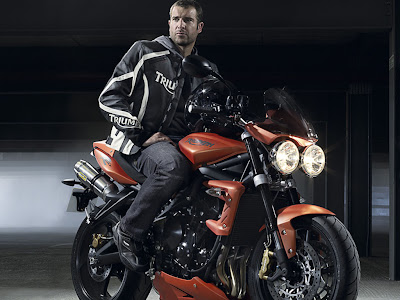

2011 Triumph Street Triple R

Specifications

Engine type: 3 cylinders, 4-stroke, Inline
Displacement: 675 cc (41.24 cubic inches)
Bore × stroke: 74 mm × 52.3 mm (oversquare – shortstroke)
Cooling system: Water cooled
Power: 106.19 HP (78.1 kW) @ 11700 rpm
Torque: 51 Nm (5.2 kg-m) @ 9100 rpm
Throttle: Cable operated
Valves
Valve train: DOHC, variable
Valves per cylinder: 4
Fuel and ignition
Sparks per cylinder: 1
Fuel supply system: Fuel injection
Ignition type: Digital CDI
Compression: 12.7:1
Engine mounting: Transverse
Lubrication system: Wet sump
Gear box: Manual 6-speed
Clutch: Wet, multiple discs, cable operated
Final drive: Chain
Starter: Electric
Dimensions
Physical measures
Length: 2030 mm
Width: 731 mm
Height: 1250 mm
Wheel base: 1390 mm
Trail: 95 mm
Seat height: 805 mm
Weight
Dry weight: 167 kg
Chassis and suspension
Frame type: aluminium, twin spar
Front
Suspension: Cartridge – upside-down
Suspension travel: 120 mm
Fork angle: 23°
Brake: Twin Disk, Ø308 mm
Tire: 120 / 70 R17 ZR
Rear
Suspension: mono shock, Swingarm
Suspension travel: 130 mm
Brake: Disk, Ø220 mm
Tire: 180 / 55 R17 ZR
Other
ABS available: No
Fuel capacity: 17.41 l
Number of riders: 2 persons
